HOW TO INSTALL DOUBLE WRAP STRAP:
HOW TO INSTALL DOUBLE WRAP STRAP:

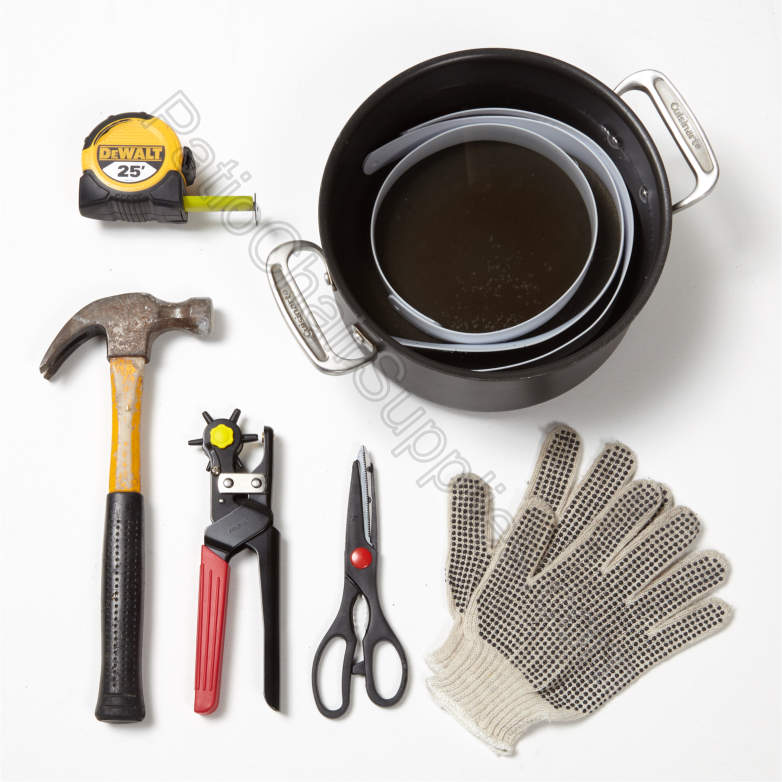

- Pot of warm water (just under boiling point)
- Scissors
- Tape measure
- Hole puncher (if you will cut your own strap)
- Hammer or rubber mallet (optional)
- Gloves
Place the straps inside the pot and wait for 5 minutes before installing. We recommend wearing gloves to protect your hands, and when you are ready to start, use tongs (optional) to grab and install one strap at a time. Once you remove the strap from the water, you have to install it right away, otherwise it will cool down and harden.

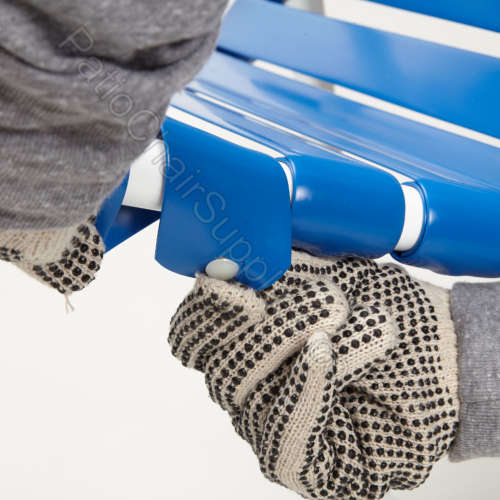

Push the rivet into both strap. Insert the rivet into the hole of one side of the chair frame and if necessary use a hammer to tap it in. As shown in Pic. 2

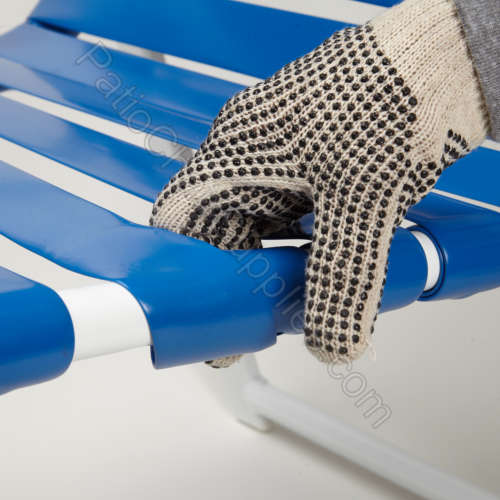

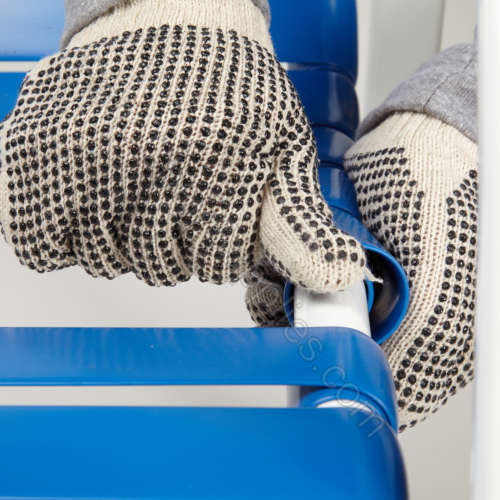

Wrap the strap around the frame twice. As shown in Pic. 3

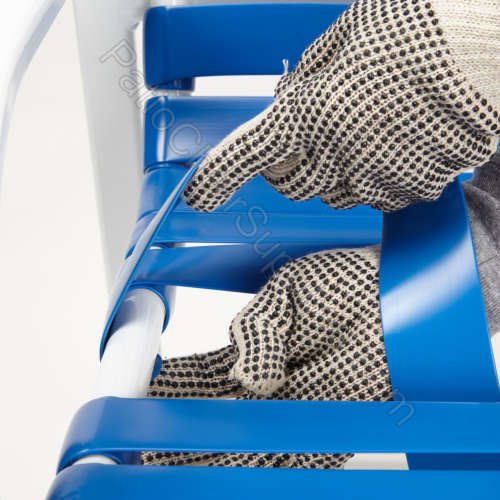

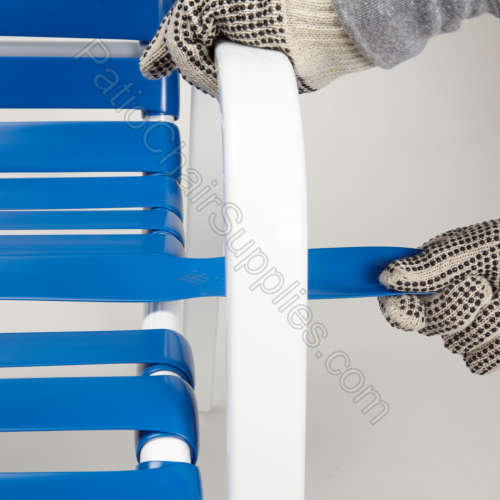

Stretch and pull the strap over the opposite side of the chair frame by 5” as shown in Pic. 4 and 5

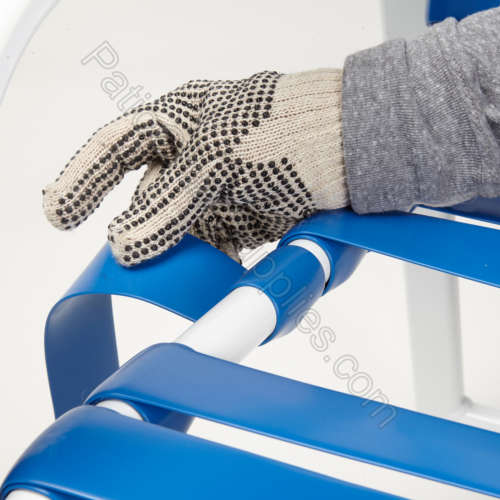

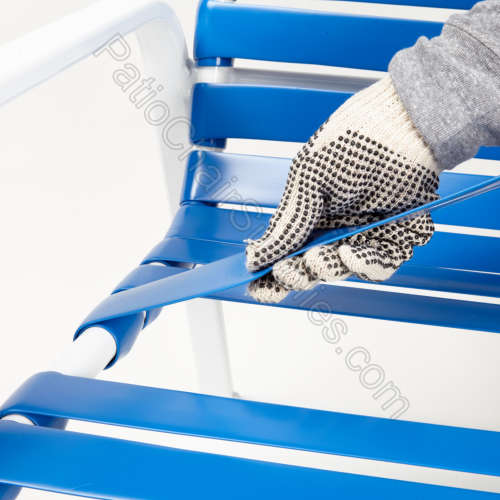

Wrap the strap around the frame twice (same as the 1st side) as shown in Pic. 6 and 7

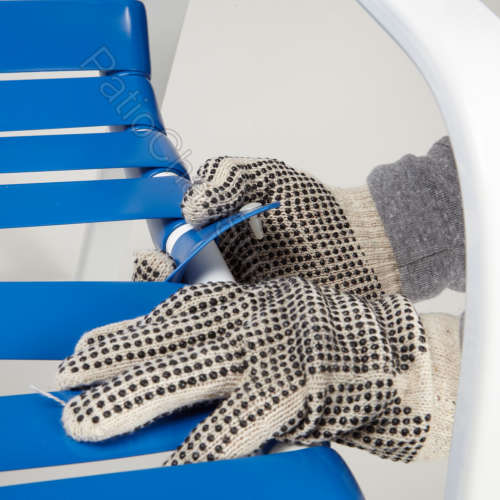

If necessary, slide and adjust the strap as shown in Pic. 8 and 9
